Construction Layout Services

Sub-centimeter precision layout,

verification & as-built documentation —

delivered at construction pace

PRECISION LAYOUT

WE SPEAK CONSTRUCTION. WE KNOW BIM.
WE WORK AT YOUR PACE.

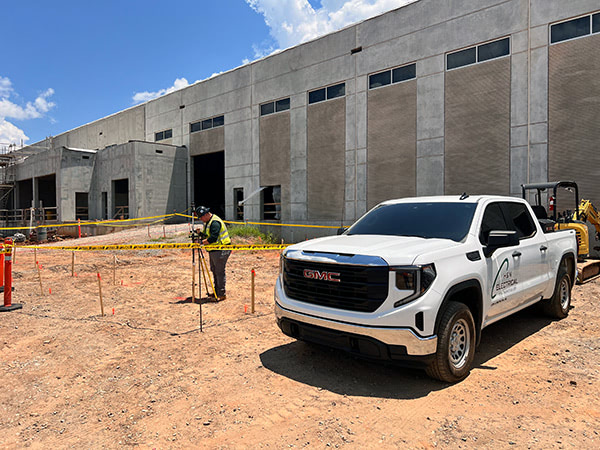

H&W Electrical’s Construction Layout Division puts survey-grade precision on the job site — translating the coordinated model directly to the field and eliminating rework from traditional layout errors.

WHO WE SERVE

General Contractors
MEP Contractors
Concrete Contractors

WHAT WE LAY OUT FOR YOU

IF IT’S IN THE MODEL,
WE CAN LAY IT OUT.

FOR GENERAL CONTRACTORS

Pre-pour rough in verification
Post-pour as-builts
Supplemental control networks
BIM to field coordination for complex geometry

FOR MEP CONTRACTORS

Equipment footprints + center lines
Stub ups + penetrations
Hangers + cable trays
Duct banks + pipe racks
Pads + pole bases

FOR CONCRETE CONTRACTORS

Slabs + pads
Embeds + sleeves
Curbs
Base plates + footings

On your site when needed professional crews, clean equipment, and layout your whole team can trust.

FOR INQUIRIES, CONTACT RYAN HERRON

E Q U I P M E N T + W O R K F L O W

MODEL → FIELD
→ AS-BUILT.

01 BIM/CAD PREP
Coordinated model & points built for the field.

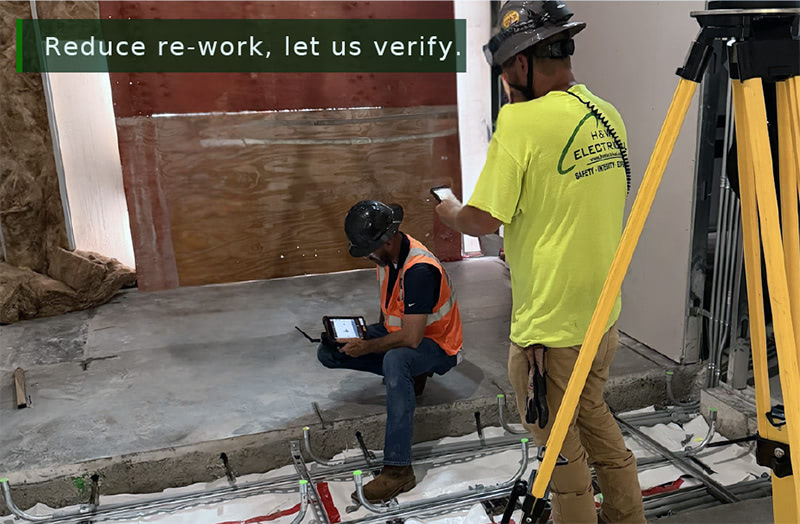

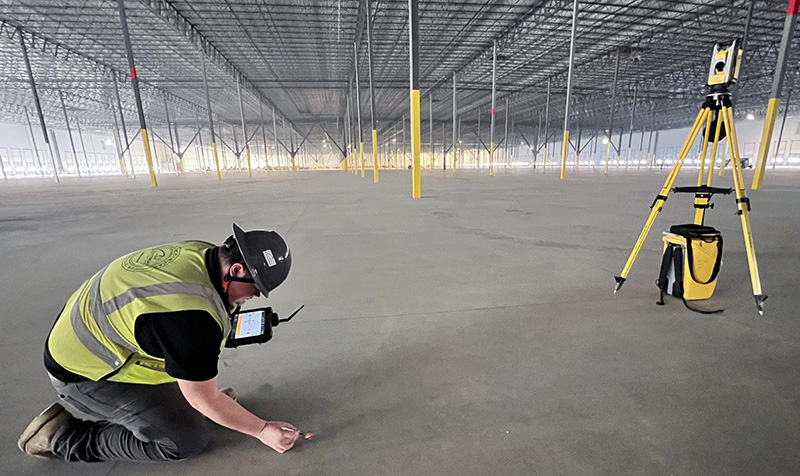

02 PRECISION LAYOUT/VERIFICATION

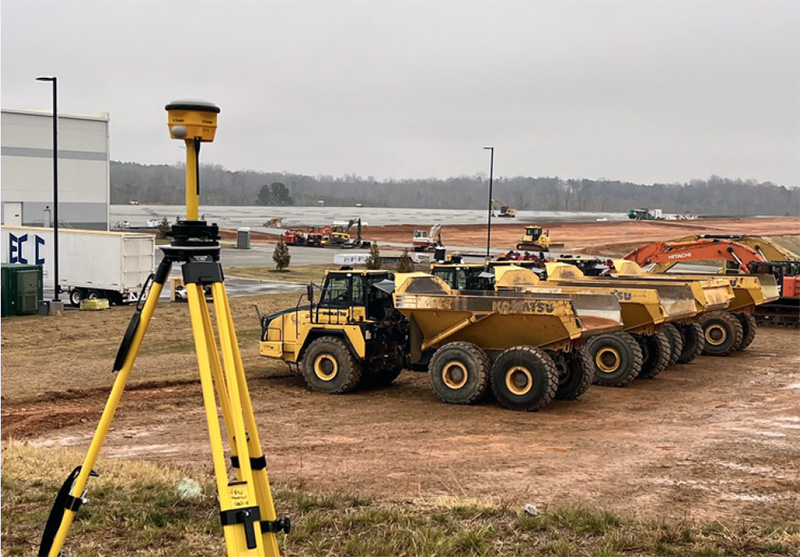

RTS + GNSS layout and installation verification

03 AS-BUILT CAPTURE
Documented deliverables back to the model.

OUR TOOLKIT

Trimble CNSS R-780’s
Trimble RTS 773 total stations
AutoCAD + Revit
In-house Engineering + BIM support

DELIVERABLES

Point Files
As-Built Documentation
Field reports
Model updates

WHY H&W FOR LAYOUT?

NOT A SURVEYOR.
NOT A SUB.
YOUR LAYOUT PARTNER.

Backed by a 50-year electrical-contracting foundation — we understand the schedule you’re building to.

Most trades run rough layout with tapes, string, and lasers, and most survey firms don’t work to construction tolerances or from your BIM model. We bridge that gap.
